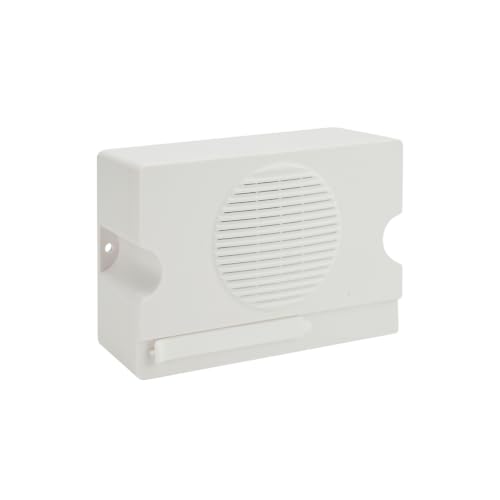

Voice Playback Module, Y5610 Voice Sound Alarm,Sound Players, Entry Switching Serial Multi Trigger High/Low Level Control Announcer Outdoor Horns Sirens for Schools, Gyms Other Public Places. - size: JR-Y5610-Voice Playback Alarm

About this item

• Industrial Voice Alarm: Y5610 voice players with 20W amplifier output, good sound quality, big sound, with adjustable potentiometer, volume size adjustment, applicable to a variety of occasions; 12V output interface, play the sound at the same time output 12V voltage, can be connected to the police lights, relays and so on; Designed according to industrial-grade standards, with strong anti-interference ability sound alarms.

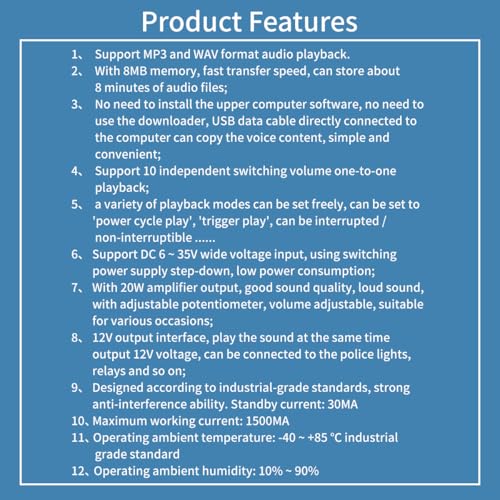

• Product Features: MP3 voice prompt sound board has 8MB memory, fast transfer speed, can store about 8 minutes of audio files;Connect the computer by USB-C cable to copy the voice content, simple and convenient to use; Support 10-channel independent switch volume one-to-one playback; Support MP3 and WAV format audio playback; Support DC 6 ~ 35V wide voltage input, using switching power supply voltage reduction, low power consumption; Multiple playback modes can be set freely, can be set to ‘power cycle play’, ‘trigger play’ can be interrupted / non-interruptible and so on.
• Voice Alarm Electrical Parameters: The 8MB sound alarm support operating voltage：DC6V～35V; Rated output power: 20W/8Ω; Audio format: MP3, WAV; Standby current: 30MA; Maximum working current: 1500MA; Operating ambient temperature: -40 ~ +85 ℃ industrial grade standard; Operating ambient humidity: 10% ~ 90%.Good for shopping malls, schools, gymnasiums, office buildings and other public places broadcasting.

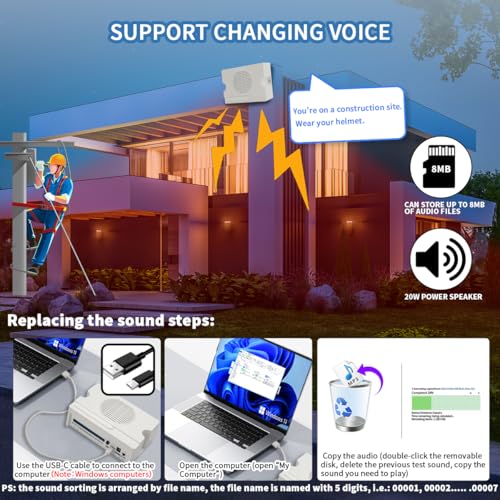

• Replace Voice Sirens Ways: 1: Using type-c cable connects to the Y5610 Voice Prompter on one end and plugs into the computer on the other; 2: Open ‘My Computer’; 3: Double-click on the removable disc, delete the previous test audio and copy in the audio you need to play. Note: The sound sorting is by filename, and the filename naming is named with 5 digits, i.e.: 00001, 00002..... .00010.

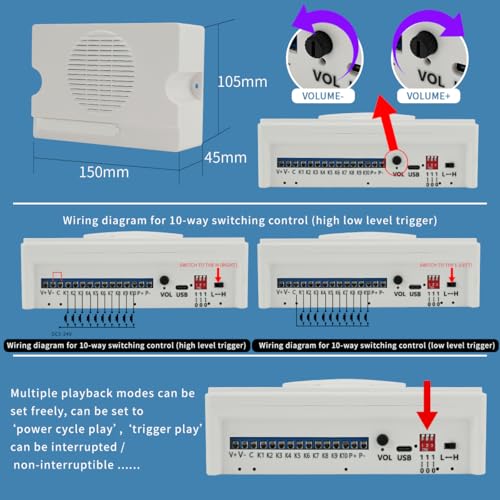

• Industrial Sound Alarm Function: The playback modes are selected by the red 3-position dip switches, and there are 8 modes in total & the diagram.DIP switch 1, 2, 3 Dial to the bottom means set ‘0’, dial to the top means set ‘1’, three gears a total of 8 combinations, corresponding to the playback mode & Product Illustration and Interface Description & Switching Control Wiring Diagram & Other Application Notes (For details, please read the manual)

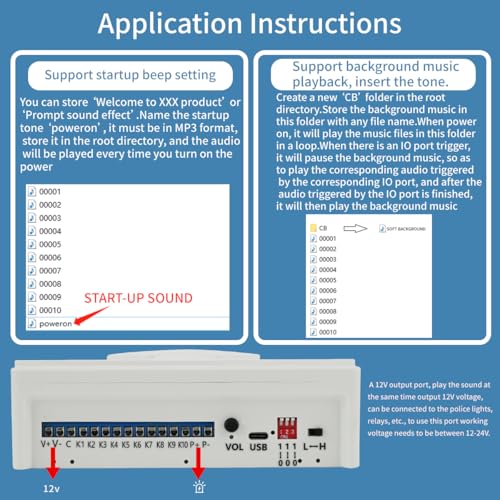

• Other Application Notes: 1. Start-up Sound : You can store ‘Welcome to XXX product’ or ‘Prompt sound effect’. Name the startup tone ‘poweron’, it must be in MP3 format, store it in the root directory, and the audio will be played every time you turn on the power (For details, please read the manual)
• Other Application Notes: 2. Background music notes for insertion: Create a new ‘CB’ folder in the root directory.Store the background music in this folder with any file name.When power on, it will play the music files in this folder in a loop.When there is an IO port trigger, it will pause the background music, so as to play the corresponding audio triggered by the corresponding IO port, and after the audio triggered by the IO port is finished, it will then play the background music (For details, please read the manual)
• Sound Horns Sirens: We have factories and hardware engineers specializing in voice sound circuit boards and modules.Various styles, support customization, If you have any questions, please email us, looking forward to cooperating with you!

Overview

• Color: White
• Brand: JRGKJCP
• Power Source: Corded Electric
• Compatible Devices: Tablet
• Product Dimensions: 6"L x 1.7"W x 4"H
