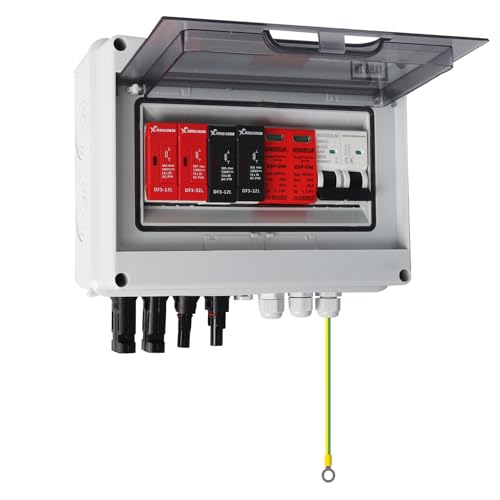

Solar Combiner Box 600V, 2 in 1 Out PV Junction Box with 15A Fuse - color: White-2 inputs and 1 Output

Solar Combiner Box 600V, 2 in 1 Out PV Junction Box with 15A Fuse - color: White-2 inputs and 1 Output

$97.72 USD
$97.72 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • 【2-String Input, 1 Combined Output】Simplify your solar array connections with a PV combiner box designed to combine two PV string inputs into one output. With a maximum input voltage of 600 V DC, the 2-input/1-output configuration helps organize wiring between the solar array and compatible downstream equipment. Centralized connection points make the system layout easier to inspect and maintain.

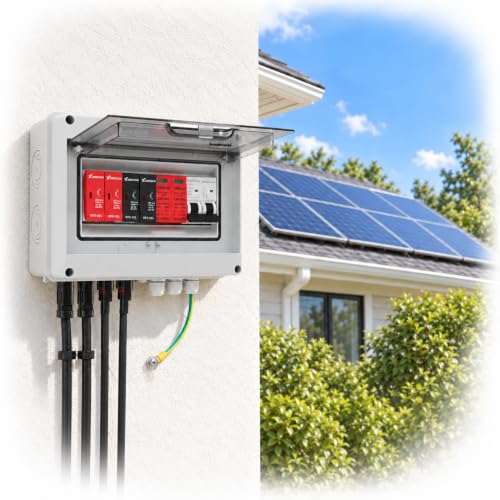

  • 【For Compatible On-Grid & Off-Grid Solar Systems】Designed for use with compatible photovoltaic arrays in home solar installations and on-grid or off-grid solar power systems. Before purchase, compare your PV string voltage and current with the combiner box specifications, and confirm connector compatibility and the input limits of your inverter or charge controller. Select the box according to your complete PV configuration.

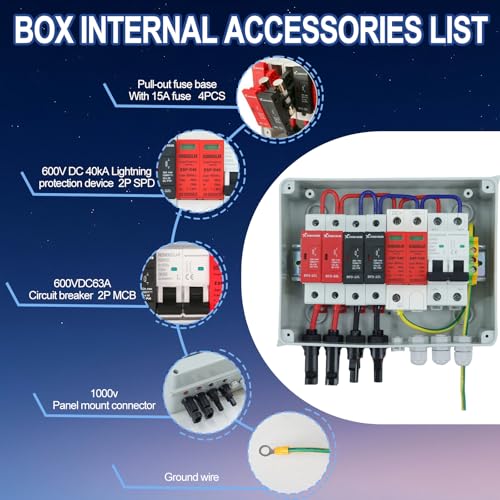

  • 【DC Fuses, Circuit Breaker & Surge Protection】 Equipped with four 15A DC fuses, a surge protective device (SPD), and a 600V 63A DC circuit breaker. The fuses and breaker provide overcurrent protection, while the SPD helps limit transient voltage surges that can affect connected equipment. The circuit breaker also provides manual on/off control for the connected circuit, supporting routine inspection and maintenance.

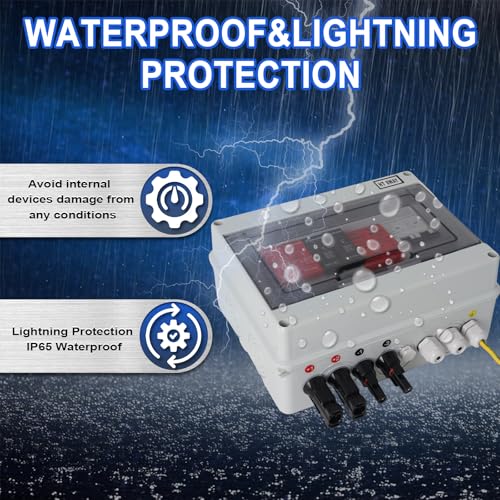

  • 【IP65 ABS Housing with a Clear PC Cover】 The sturdy ABS enclosure features an IP65 protection rating to help shield internal components from dust and water exposure when correctly installed and sealed. A transparent polycarbonate cover allows you to view the internal component layout without opening the box. Keep the cover securely closed and cable entries properly sealed to maintain enclosure protection.
  • 【Easy Installation & Clear Wiring】 The wiring connections are pre-completed inside the PV combiner box, including the ground wire. This saves up to 1 hour of manual wiring time. The box also comes with a PV connector and a dedicated waterproof cable connector for plug-and-play use, providing a quick and simple solution for connecting solar panels.

Overview

  • Operation Mode: ON-OFF
  • Current Rating: 30 A
  • Operating Voltage: 240 volts
  • Contact Type: Normally Closed
  • Connector Type: Plug In
  • Brand: Ligefoy
  • Switch Type: Rocker
  • Terminal: Through Hole
  • Material: Alloy Steel

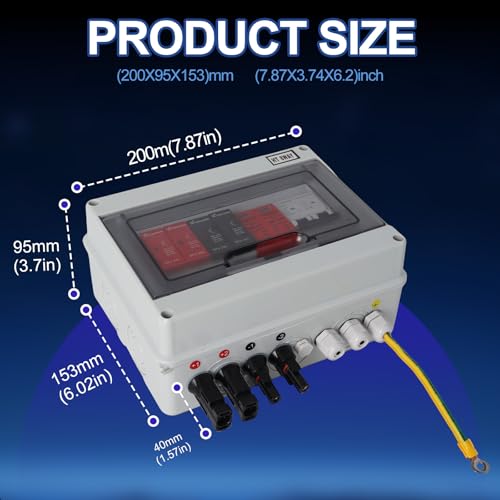

  • Item dimensions L x W x H: 7.87 x 3.7 x 6.02 inches

Low stock: 10 left
