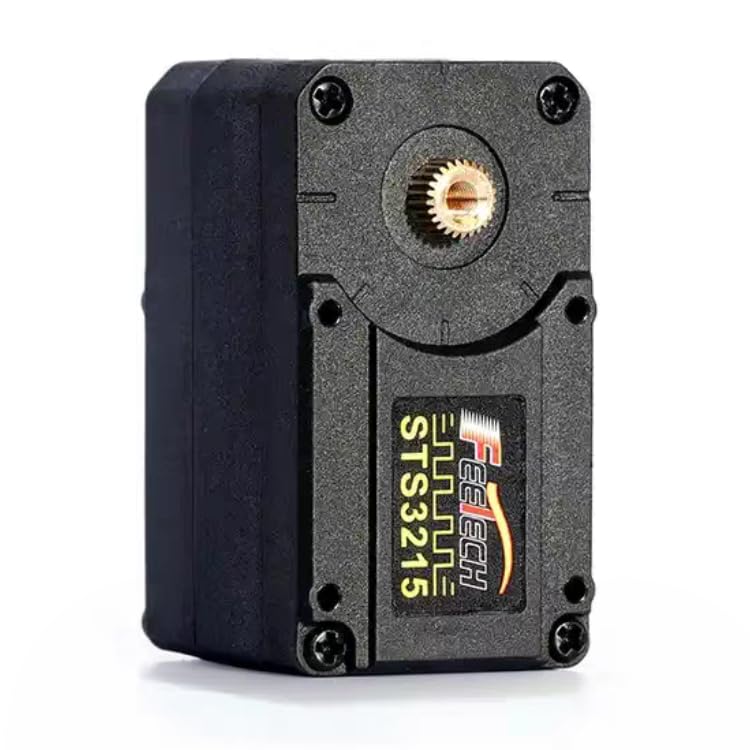

SO-ARM100 Robotic Arm Servo Motor 7.4V w/ 20 Inch Debugging Wire Reduction Ratio 1/191 Compatible w/ STS3215 Servo

SO-ARM100 Robotic Arm Servo Motor 7.4V w/ 20 Inch Debugging Wire Reduction Ratio 1/191 Compatible w/ STS3215 Servo

$39.82 USD
$39.82 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • High-Torque Performance Specs: Operates at 6V-7.4V with peak stall torque of 19.5kg.cm@6V, rated torque of 6.5kg.cm@6V, no-load speed of 0.238sec/60°@6V, running current of 150mA@6V (no load), and stall current of 2000mA@6V—delivering robust power for industrial equipment, robots, and small torque drive scenarios.
  • Included 20-Inch Debugging Wire: Flexible wire for effortless probing, error investigation, and connection testing—makes research, prototyping, and troubleshooting significantly easier and more efficient during development.
  • Compatibility: Uses on LeRobot SO-101 leader/follower arms. Fully compatible with Feetech ST-3215-C001 and Waveshare ST3215 servo motor.
  • One-Click Calibration: Install at any 360-degree position and use one-key calibration (via 40-address input 128) to set the center—exclusive to magnetic encoding for hassle-free setup, improved production efficiency, and reduced maintenance costs (unlike potentiometer servos that require pre-adjustment).
  • Advanced Magnetic Encoding: Features a 12-bit high-precision magnetic coding sensor for 360-degree continuous rotation with precise position control over a 360-degree range; supports multi-turn large-angle control with absolute feedback across ±7 turns (expandable to hundreds), retaining position data even after power loss (turns not saved).
  • TTL Serial Bus Control: Command signal via digital packet for easy integration; multiple servos can be daisy-chained on the same bus, enabling scalable setups in complex systems like robotics and automation.

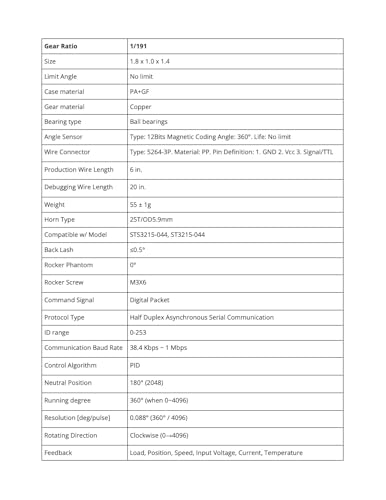

Overview

  • Brand: Generic
  • Model Name: Reduction Ratio 1/191
  • Speed: 52 rpm
  • Voltage: 7.4 volts
  • Horsepower: 3 watts

Low stock: 10 left

View full details
