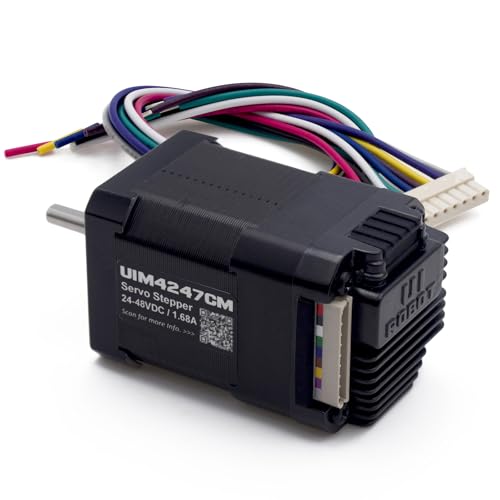

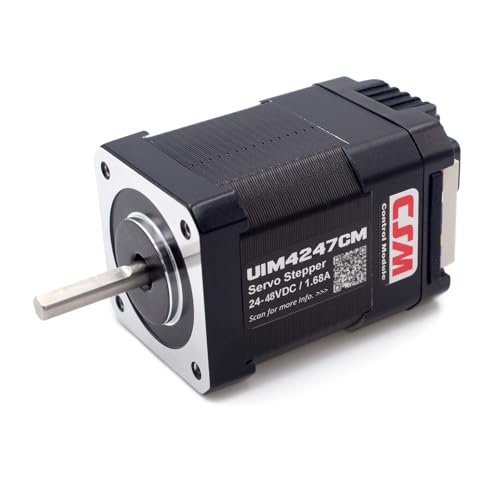

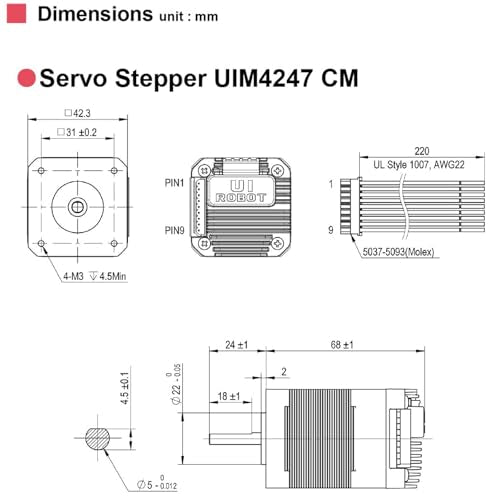

NEMA17 Integrated Servo Stepper Motor,CAN Bus,w/Encoder,Controller - style: Incremental Encoder

NEMA17 Integrated Servo Stepper Motor,CAN Bus,w/Encoder,Controller - style: Incremental Encoder

$167.15 USD
$167.15 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

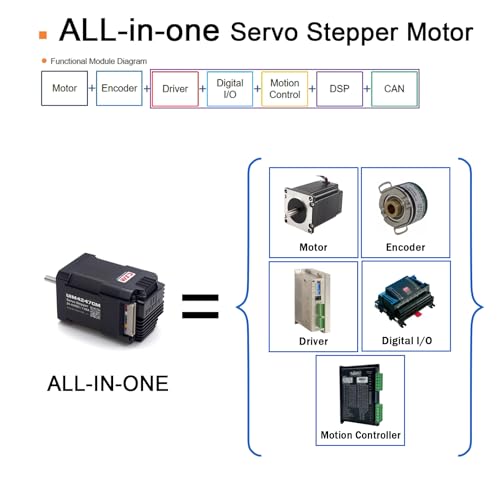

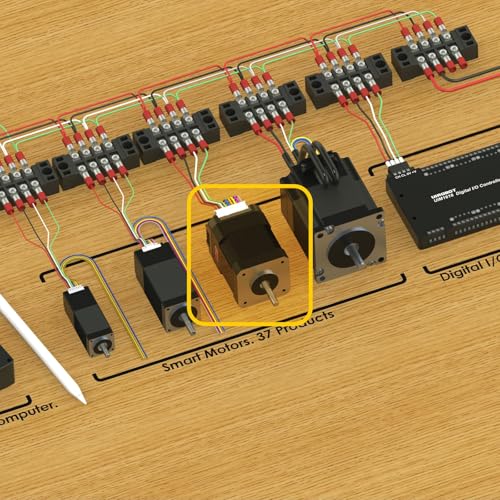

  • 【FULLY FUNCTIONAL】 Our motor controller is a Nema 17 (42x42mm), all-in-one CAN interface smart servo step motor that comes with an encoder, motor driver and motion controller, in aluminum alloy case. Highly integrated, saving a lot of space. Using the CANBUS protocol, multiple motors can communicate simultaneously to achieve complex motion control.
  • 【POWERFUL TECHNICAL SUPPORT】 This Nema 17 stepper motor incorporate robust DSP core and fault tolerance, fail safe user interface, along with free debug/control software and complete SDK, lib, dll and C++, C# example codes.

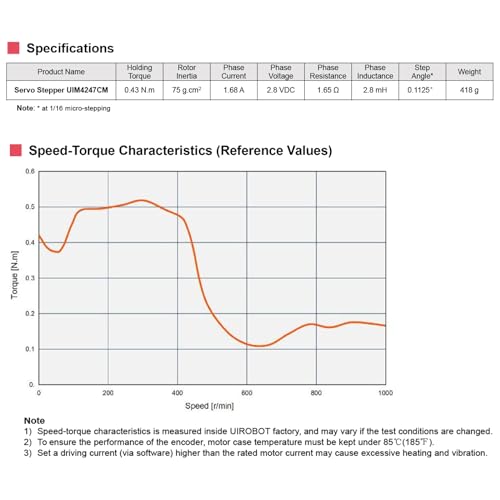

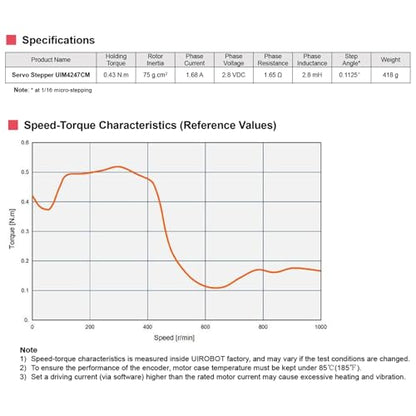

  • 【PERFECT REPLACEMENT】Holding Torque 0.43 N.m, 1-128 micro-stepping, 24-48 VDC supply voltage and 0.8-1.7 Amp adjustable current. Running with no vibration/noise and high torque, good substitution of AC/DC servo motor at low speed.
  • 【EXCELLENT DESIGN】Closed-loop motion, high positioning accuracy, fast response, and high speed to 3000 rpm. Supports speed control mode, position control mode, backlash compensation, stall detection, and many other control functions.
  • 【LOW NOISE】This arduino stepper motor comes with 3 inputs, 1 output and 3 trigger modes to suppress electrical noise. 11 actions can be attached to each input level change. All inputs can generate notifications when triggered.

Overview

  • Brand: UIROBOT
  • Model Name: UIM4247CM
  • Speed: 3000 rpm
  • Voltage: 24 volts_of_direct_current
  • Product Dimensions: 1.65"W x 1.65"H
