LONELY BINARY Logic Analyzer Kit, 8 Channel 24MHz USB with Breakout Boards

LONELY BINARY Logic Analyzer Kit, 8 Channel 24MHz USB with Breakout Boards

$33.18 USD
$33.18 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

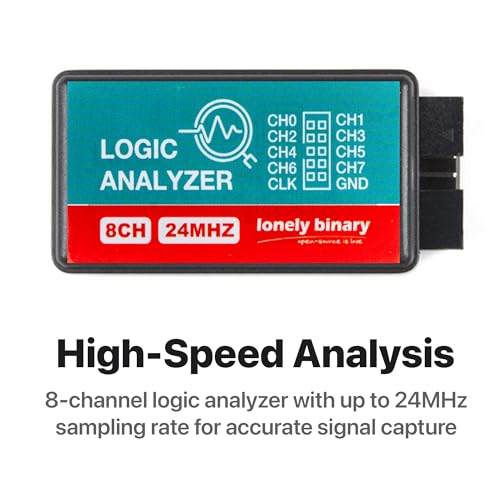

  • 【High-Speed 8-Channel Analysis】Captures digital signals at up to 24MHz across 8 channels, enabling precise debugging of complex protocols like I2C, SPI, and UART—ideal for advanced STEM projects without the limitations of basic 4-channel models.
  • 【User-Friendly Design】Base module and breakout board simplify connections to breadboards, microcontrollers, and other setups.
  • 【Logic Level Expansion Board】Breaks out all 8 channels to 2.54mm male pins and pads for alligator clips, enabling flexible and secure connections in diverse projects.

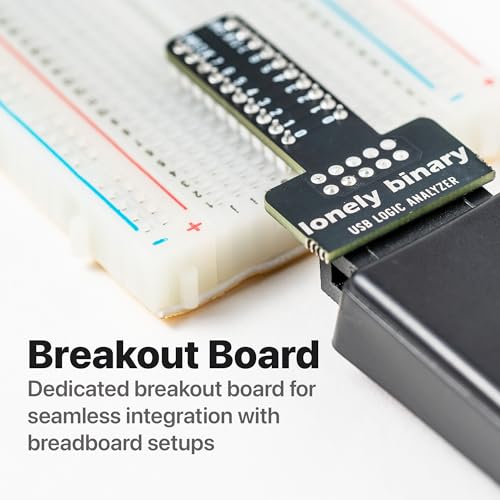

  • 【Logic Level Breadboard Adapter】 Easily connects the logic analyzer to breadboards, providing direct and convenient access to all 8 channels for prototyping and testing.

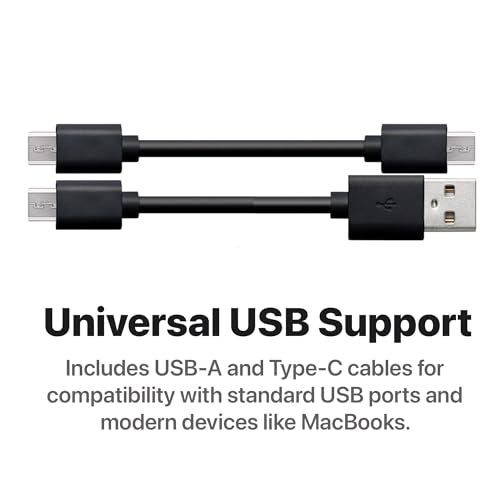

  • 【Dual USB Connectivity】Comes with both USB-A and Type-C cables for universal compatibility with older PCs, modern laptops, and devices, ensuring hassle-free plug-and-play across Windows, Mac, Linux, and Ubuntu.

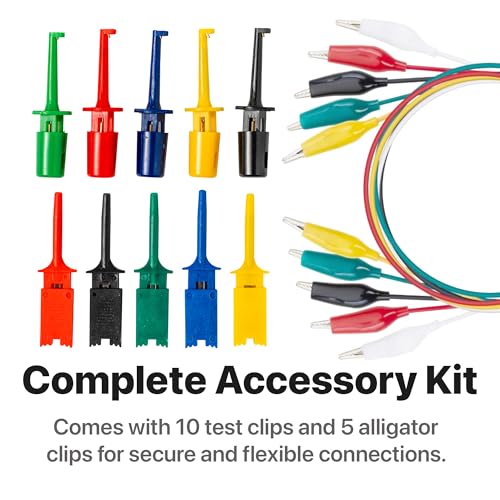

  • 【Comprehensive Accessory Kit】Bundled with 10 test clips, 5 alligator clips, jumper wires and a portable storage case—everything needed for immediate out-of-the-box use, reducing setup time and extra costs.

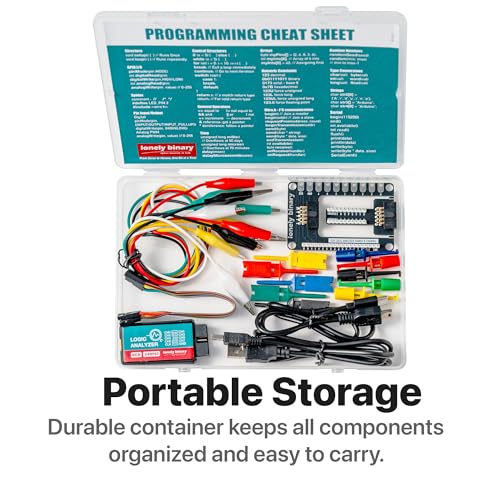

  • 【Portable and Organized】Compact storage container keeps components safe and accessible, perfect for on-the-go projects.
  • 【Versatile Applications】Ideal for hobbyists, students, and professionals working on embedded systems, IoT, or protocol analysis.

Overview

  • Brand: LONELY BINARY
  • Operating System: Windows, Mac, Linux
  • CPU Model: Core 2 Duo 2.4GHz
  • CPU Speed: 24 MHz
  • Specific Uses For Product: Debugging Microcontroller Communications: Analyze serial protocols like I2C, SPI, and UART in Arduino or ESP32-based projects, such as troubleshooting sensor data in robotic arms or IoT devices—captures timing issues across 8 channels for precise signal decoding., Protocol Testing in Embedded Systems: Test and generate signals for I2C or SPI buses in DIY prototypes, ideal for verifying communication between components in smart home gadgets or wearable tech, Reverse Engineering Consumer Electronics: Capture and decode signals from devices like remote controls, standing desks, or home automation systems to create custom interfaces, e.g., building a wireless Arduino remote by analyzing button press data Debugging Microcontroller Communications: Analyze serial protocols like I2C, SPI, and UART in Arduino or ESP32-based projects, such as troubleshooting sensor data in robotic arms or IoT devices—capture… See more
  • Model Name: Logic Analyzer 8 Channels 24MHz USB Kit

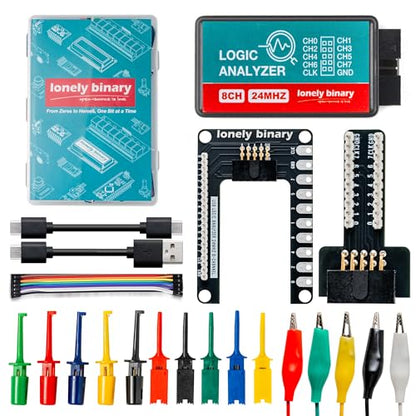

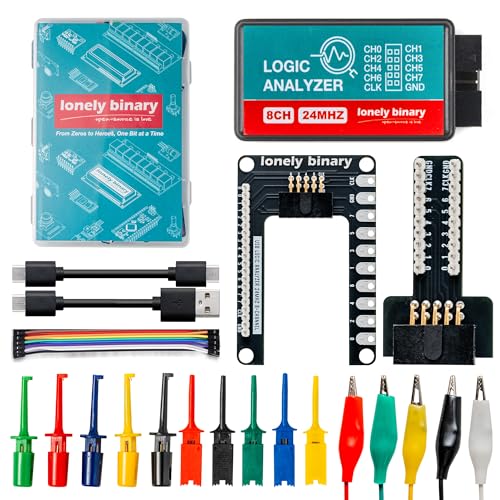

  • Included Components: 1 × Logic Analyzer Base Module (8 Channels, 24MHz), 1 × Logic Level Breadboard Adapter, 1 × Breadboard Breakout Board, 1 × Logic Level Expansion Board (2.54mm pins and pads), 1 × USB-A Cable , 1 × USB Type-C Cable, 10 × Test Clips, 5 × Alligator Clips, 1 × Storage Container 1 × Logic Analyzer Base Module (8 Channels, 24MHz), 1 × Logic Level Breadboard Adapter, 1 × Breadboard Breakout Board, 1 × Logic Level Expansion Board (2.54mm pins and pads), 1 × USB-A Cable , 1 × USB… See more

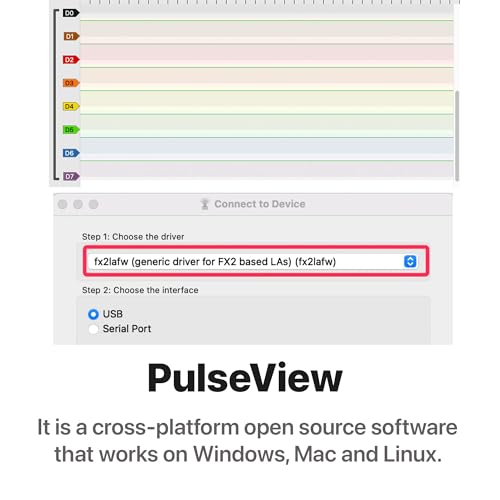

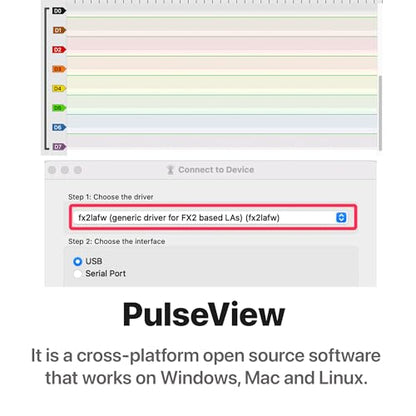

  • Special Feature: Breadboard-Optimized Adapters: Includes a dedicated Logic Level Breadboard Adapter and Breakout Board with 2.54mm pins and pads, allowing seamless, solder-free integration with breadboards, ESP32, Arduino, or Raspberry Pi setups for quick prototyping., Cross-Platform Reliability: Seamlessly works on multiple OS (Windows, Mac, Linux) with open-source software, praised for "awesome traces" and event triggering—perfect for enthusiasts tinkering on various systems without compatibility headaches., Dual USB Connectivity: Comes with both USB-A and Type-C cables for universal compatibility with older PCs, modern laptops, and devices, ensuring hassle-free plug-and-play across Windows, Mac, Linux, and Ubuntu., High-Speed 8-Channel Analysis Breadboard-Optimized Adapters: Includes a dedicated Logic Level Breadboard Adapter and Breakout Board with 2.54mm pins and pads, allowing seamless, solder-free integration with breadboards, ESP32,… See more
  • CPU Manufacturer: Apple
  • Connectivity Technology: USB

Low stock: 10 left
