Bringsmart DC 12V 20rpm Gear Motor with Bracket Centric Shaft 37mm Gearbox - style: 12V 20RPM

Bringsmart DC 12V 20rpm Gear Motor with Bracket Centric Shaft 37mm Gearbox - style: 12V 20RPM

$35.81 USD
$35.81 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

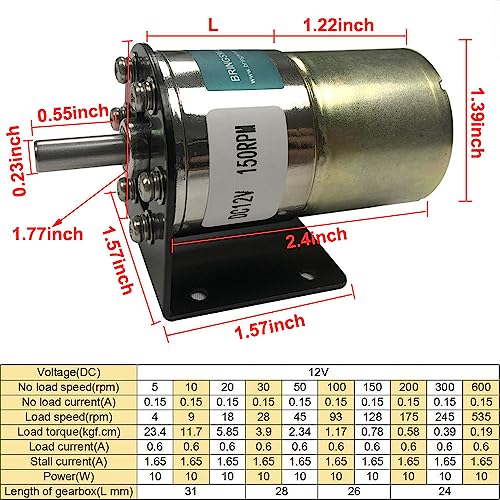

  • [Parameter] Voltage DC12V, No load speed 20rpm, Load speed 18rpm, Load torque 5.85kgf.cm, Load current 0.6A, Stall current 1.65A, Power 10W.

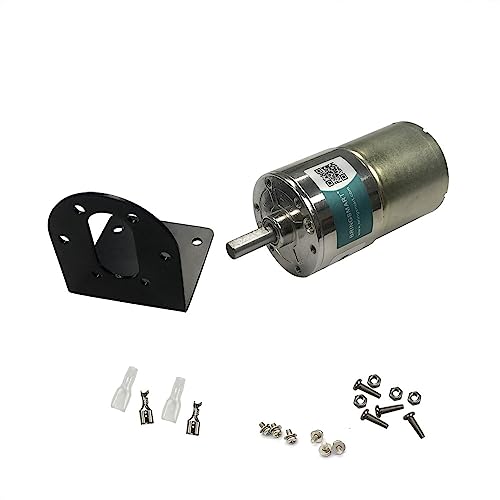

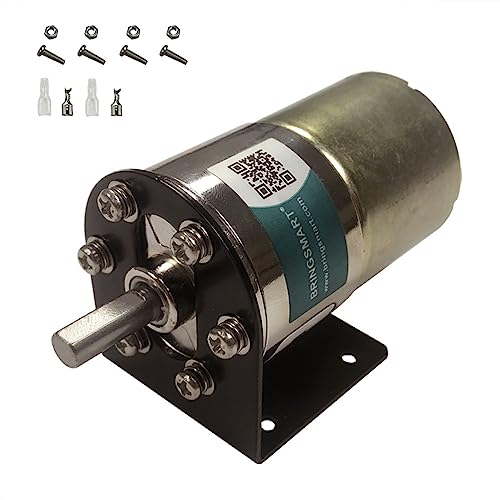

  • [Package] 1pcs JGB37-520 gear motor, 1pcs 37mm mounting bracket, 6pcs M3 screws for locking motor and bracket, 4pcs M3 screws and nuts for mounting bracket, 2pcs 4.8mm reed terminal and sheathed female connector for connecting motor to wires.

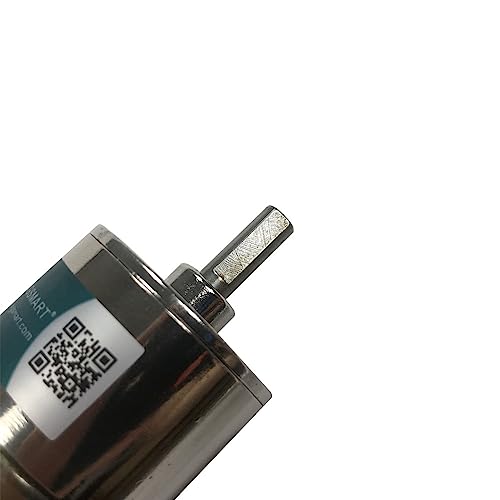

  • [Features] All Metal Gears, high-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable. Steel 5.5mm D Output Shaft, using high hardness steel, good toughness, impact resistance. Pure Copper Rotor. with precision winding technology, the geared motor power instant increased by 30%.

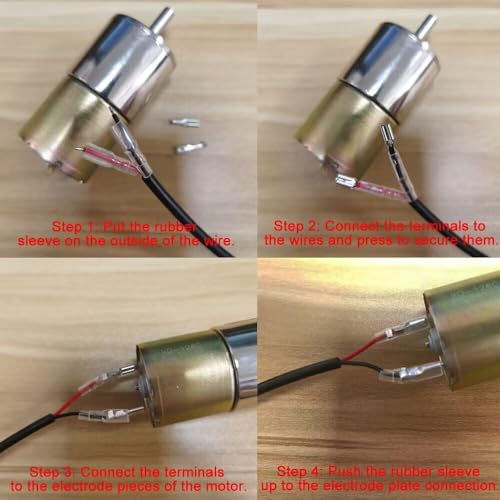

  • [Notes] 1, If the motor does not work properly, it may be because the electrode piece may be knocked into the motor during transportation due to collision, causing connection problems. Gently pull out a little and try again. 2, the no-load speed of the motor itself has an error of 10% floating up and down. At load, the motor speed will also drop to the load speed. 3, this motor can not work continuously for a long time, please be able to rest for 5 minutes after working for 5 minutes. To ensure the normal life of the motor.
  • [Insurance] Any quality issues, we promise 100% unconditional return service. If you need other voltage and rpm, please feel free to contact us! If you have any question about the motor, please also contact us. We will try our best to reply you asap.

Overview

  • Brand: BRINGSMART
  • Model Name: JGB37-520X
  • Speed: 20 rpm
  • Voltage: 12 volts
  • Horsepower: 10 watts

Low stock: 10 left

View full details
