500N/112Lbf Digital Push Pull Force Gauge with Lever Test Stand

500N/112Lbf Digital Push Pull Force Gauge with Lever Test Stand

$713.78 USD
$713.78 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • 500N CAPACITY AT 0.5% ACCURACY - Reads up to 500N (112 lbf / 51 kgf) at 0.1N resolution, so small changes in pull or push load are easy to see. Real-time, PEAK and AUTO-PEAK modes cover how you actually test. Going over permanently damages the sensor
  • LEVER TEST STAND, NOT HAND PULLING - The lever drives the gauge through a smooth 70mm (2.8 in) stroke so two operators get the same curve on the same part. A 12kg base on a 155 x 240 x 420mm footprint plus a mounting plate with 3.9-12.6 in of travel keep the load in line up to 500N

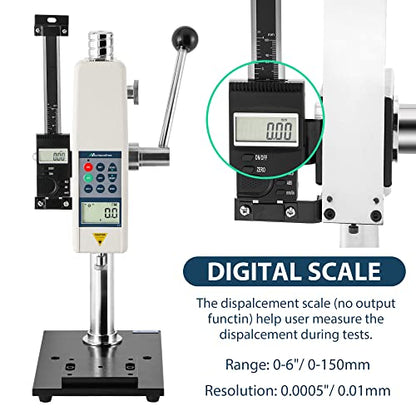

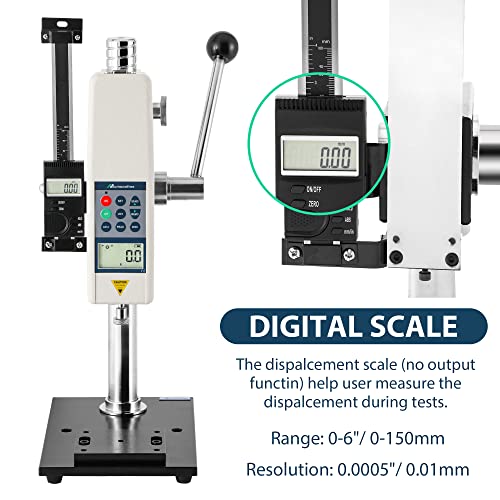

  • BUILT-IN DISPLACEMENT SCALE - The scale on the side of the stand measures how far the sample travels during a test, from 0-150mm (0-6 in) at 0.01mm resolution. Log the travel that goes with each peak force instead of guessing it. The scale reads on its own display and has no data output

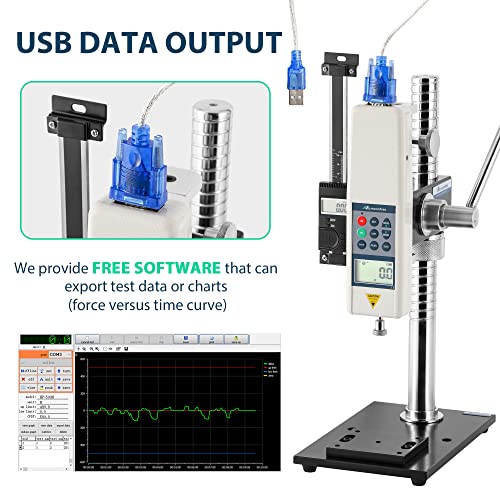

  • 999 READINGS AND USB OUTPUT - Store up to 999 sets of peak readings, then move them to a Windows PC over the RS-232 to USB cable and export CSV, Excel or PDF. The USB port transfers data only and does not charge it, use the supplied adapter (100-240V in, DC 5V 0.5A out). C 5V 0.5A out). Battery runs about 6 hours per charge.

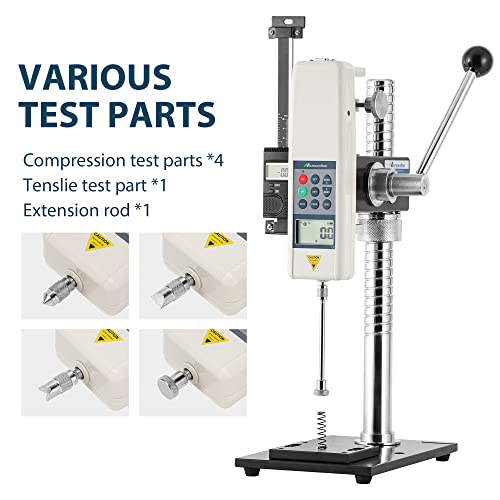

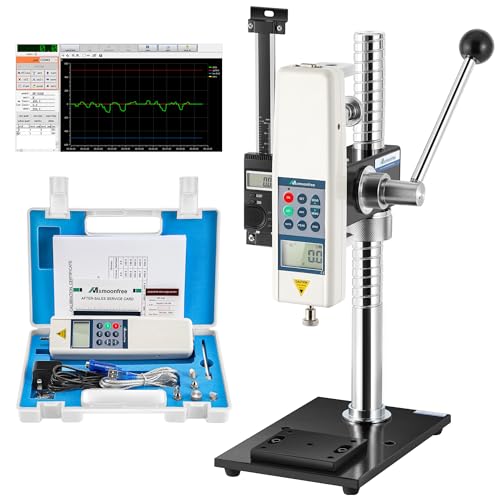

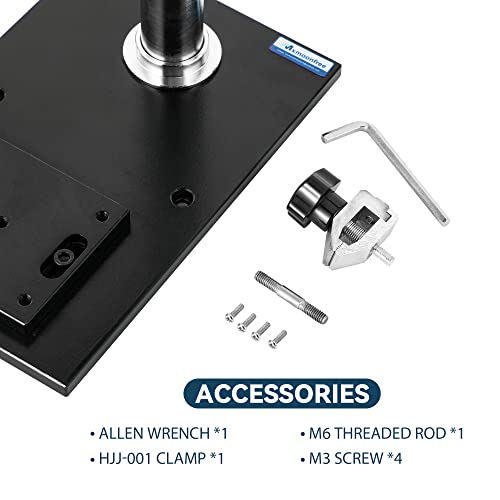

  • COMPLETE KIT, READY TO TEST - HP-500N gauge, HPB stand, HJJ-001 clamp with M6 thread, 0-3.5mm (0.14 in) jaw opening and 14mm jaw width, 4 compression fixtures, 1 tension fixture, 1 extension shaft, RS-232 to USB cable, AC adapter and a fitted carrying case. The M6 thread also fits other fixtures

Overview

  • Brand: Mxmoonfree
  • Material: Metal
  • Item dimensions L x W x H: 9.45 x 6.1 x 16.54 inches
  • Item Weight: 12 kg
  • Item Highlight: HP-500N Gauge with HPB Lever Stand and HJJ-001 Clamp, 0.5% Accuracy, 999 Peak Readings, USB Data Export, Heavy Duty Base HP-500N Gauge with HPB Lever Stand and HJJ-001 Clamp, 0.5% Accuracy, 999 Peak Readings, USB Data Export, Heavy Duty Base

Low stock: 10 left

View full details
