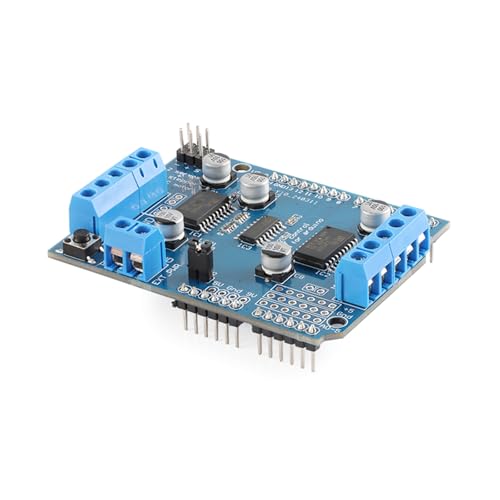

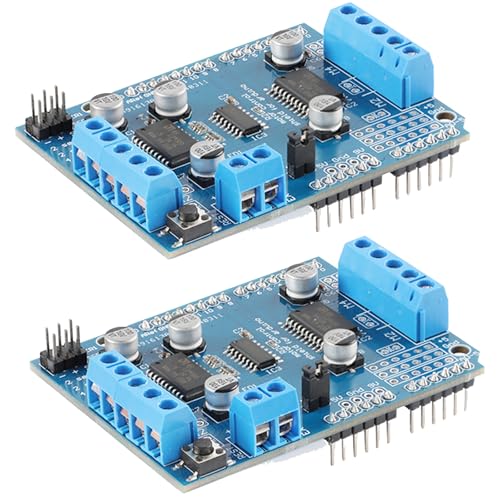

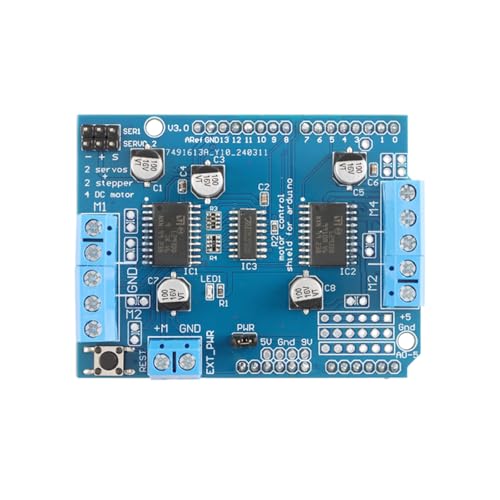

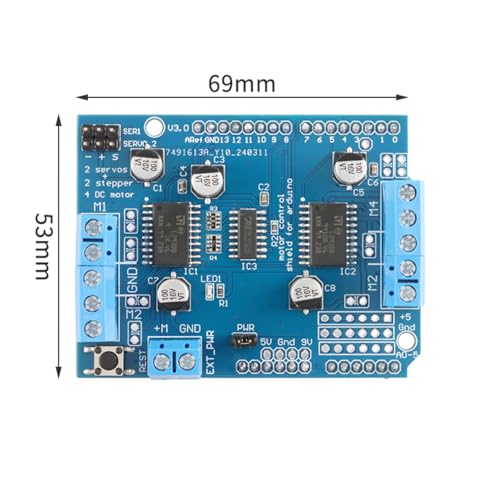

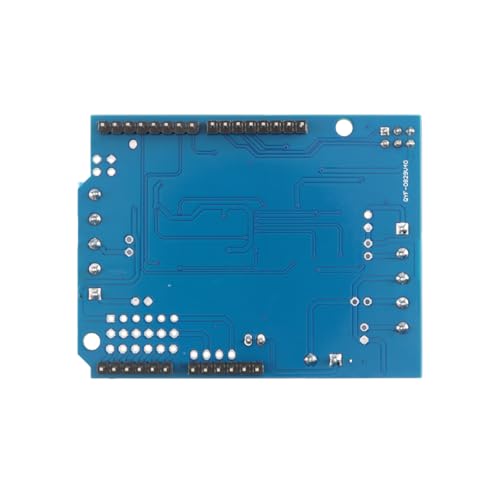

2 Pack L293D DC Stepper Motor Control Shield Servo Driver Expansion Board Module for Arduino Mega2560 2/4 Channel R3 L293

2 Pack L293D DC Stepper Motor Control Shield Servo Driver Expansion Board Module for Arduino Mega2560 2/4 Channel R3 L293

$16.52 USD
$16.52 USD
Sale Sold out
Taxes included. Shipping calculated at checkout.

About this item

  • 2 connections for 5V 'hobby' servos connected to the Arduino's high-resolution dedicated timer - no jitter! Up to 4 bi-directional DC motors with individual 8-bit speed selection (so, about 0.5% resolution) . Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil, interleaved or micro-stepping. 4 H-Bridges: L293D chipset provides 0.6A per bridge (1.2A peak) with thermal shutdown protection, 4.5V to12V. Pull down resistors keep motors disabled during power-up .
  • 【Product details】 Scope of application: Arduino beginners, Arduino experimental equipment platform, Arduino interactive electronics, A Arduino robot and so on. Features: Multi-functional, easy to operate, a powerful driver library support and functionality updates. Disadvantages: 1/0 occupies more in the case of simultaneous drive four-way motor (relative to Arduino 1/0 fewer version), small power.
  • Can drive 4-way DC motor or 2-way stepper motor at the same time can also drive 2-way servo, support ZUI new Arduino , Arduino Mega 2560 Match with. Drive four DC motors and two servos. Drive two DC motors and one stepper motor and two servos. Drive two stepper motors and two servos.
  • Motor Driver Expansion Board L293D Two 5V servo motor (servo) ports connected to Arduino's high-resolution. Up to 4 bi-directional DC motors and 4-way PWM speed control. Up to 2 stepper motors with forward/reverse control, single/double stepping, staggered or micro-stepping and rotation angle control. 4 H-Bridges: The L293D chip provides .0. 6A (1. 2A peak) per bridge with thermal cutoff protection, 4. 5V to 36V protection, and a high power supply. protection, 4.5V to 36V.
  • Pull-down resistor ensures that the motor stays stopped on power-up. Large terminal blocks make wiring easier (10 - 22AWG) and power supply. Arduino reset button included. Two large terminals for external power supply ensure separation of logic and motor drive power. Compatible with Mega, Diecimila, & Duemi ! anove. A full set of loose parts is available for do-it-yourself enthusiasts. Download the easy-to-use Arduino software library for quick project development.

Overview

  • Brand: JESSINIE
  • Model Name: L293
  • Connectivity Technology: GPIO, USB
  • Included Components: Loose parts (specific components not listed)
  • Operating System: FreeRTOS
